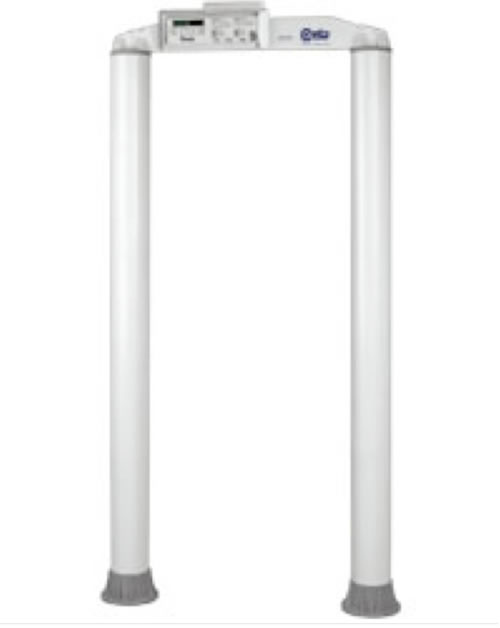

Metal Detection Archways - Ceia Classic

The most user friendly walk-through metal detector

The Classic is a Walk-Through Metal Detector designed and engineered to meet the specific security needs of public facilities such as schools, hotels, amusement parks and city halls.

The Classic Metal Detector combines the required Security with a high level of operating efficiency. The leading edge technology features a high flow rate of people through the gate with the minimum number of nuisance alarms, as personal items such as coins, keys and belt buckles can pass through the magnetic field without causing an alarm.

The Classic Metal Detector is compact and lightweight, making this portable unit adaptable to any surroundings. The patented cylinder design is aesthetically suitable for the most discrete applications. This security equipment does not require any special training for normal use, the most "user friendly" walkthrough metal detector in the industry.

CEIA Metal Detectors have been selected by leading security agencies worldwide to protect high-ranking government officials. The Classic conforms to all International Security Standards and is capable of detecting both magnetic and non-magnetic weapons.

When security, operating efficiency and affordable pricing are required, the CEIA Classic Metal Detector is the obvious solution.

Ceia Classic
Scan-X Security
Scan-X Security
Scan-X Security
Ceia Classic
Scan-X Security
Scan-X Security
Scan-X Security
Ceia Classic
Scan-X Security
Scan-X Security
Scan-X Security

Click on an image to enlarge

Scan-X

Ceia Classic - Features & Specifications

Main Features
  • No maintenance required
  • All functions programmable and controlled by a microprocessor
  • Multiple installations: automatic synchronisation between two or more metal detectors with a reciprocal distance of down to 5 cm (2”) without the use of cables
  • Control unit incorporated into the detector
  • Easy maintenance: modular control unit for a rapid replacement
  • Digitally-adjustable sensitivity with a wide range of values
  • Programming access protected by hardware key
  • Professional high integration and reliability electronics
  • No initial or periodic calibration
  • Colour: light grey RAL 7040
Installation Data
Power Supply: 115 vac (230 vac available on request)
+10/-20%, 45 ÷ 65 hz, 20 va max
Operating Temperature: -20°c to +70°c
Storage Temperature: -35°c to +70°c
Relative Humidity: 0 to 95% (without condensation)
Alarm Modes
    Visible Signals
  • High intensity display
  • Green and red metering signals proportional to the mass of the object detected
    Audible Signals
  • High acoustic intensity alarm signal
  • Volume and tone of alarm signal can be programmed
Certification and Conformity
  • Conforms to the current international security standards for walk-through metal detectors
  • Complies with EC regulations and international standards relating to electrical safety and Electromagnetic Compatibility (EMC)
  • Complies with regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)
Accessories
  • MBSU-1 Unit
  • Stabilizing Plates
  • Metal Detector Divesting Table
  • Test Samples

PDFClick on the icon to download a full Specification Sheet in Adobe Acrobat PDF format
