Metal Detection Archways - Ceia PMD2

Advanced technology for enhanced weapons location

PMD2, acronym for Programmable Metal Detector, is the most advanced CEIA application with an international patent of its own. It generates an electromagnetic scanning field for the detection of metallic weapons inside a monitored passage. Due to this technology, the PMD2 Metal Detector accurately pinpoints location of weapons on individuals during transit resulting in accelerated search process.

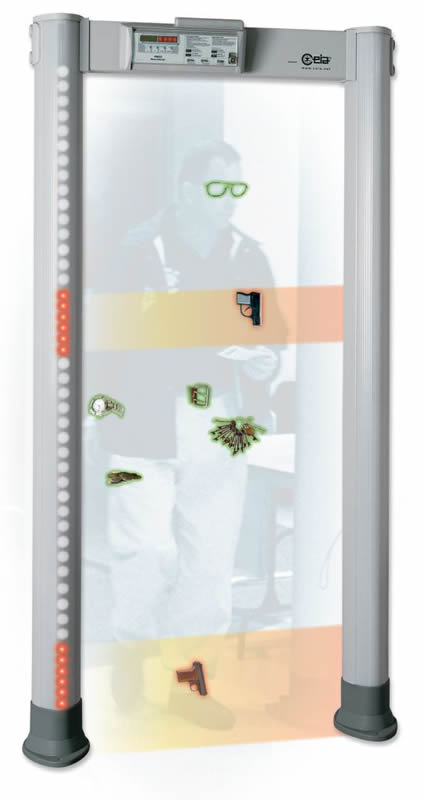

A "height on person" display actually indicates, by means of illuminated LED’s, the position of the weapon. The location zones are not fixed, as in the case of metal detectors with multiple receiver-transmitter coils, but variable and continuous to achieve optimum resolution. The PMD2 Metal Detector is recommended for use in all high security applications where the maximum degree of protection is required, combined with a substantial flow of people and the minimum number of alarms due to personal metal items.

The PMD2 is available in panel (PMD2/PTZ) or column (PMD2/ENZ) version. An outdoor column version, PMD2/EWZ, is offered with an IP65 degree of protection. The PMD2 is manufactured using the most advanced electronics technology, conforming to ISO 9001 Quality Control Standard procedures.

Click on an image to enlarge

Ceia PMD2 - Features & Specifications

Main Features

Detection of magnetic, non-magnetic and mixed alloy metal weapons High transit flow-rate thanks to the discrimination of personal metal items Immediate selection of international security standards Programmable operation controlled by microprocessor Programming via built-in keypad and display or RS-232 serial connection to remote control unit (RCU2), a PC or a computer network Programming access protected by both a mechanical lock and two alphanumeric passwords	High detection speed: up to 15 m/s (45 ft/s) exceptional immunity to electromagnetic and Mechanical interference Multiple installations: automatic synchronisation between two or more metal detectors with a reciprocal distance of down to 5 cm (2”) without the use of cables High-integration professional electronics and maximum reliability Control unit incorporated into the detector No initial or periodic calibration Easy maintenance: modular control unit for a rapid replacement Colour: light grey RAL 7040

Detection of magnetic, non-magnetic and mixed alloy metal weapons
High transit flow-rate thanks to the discrimination of personal metal items
Immediate selection of international security standards
Programmable operation controlled by microprocessor

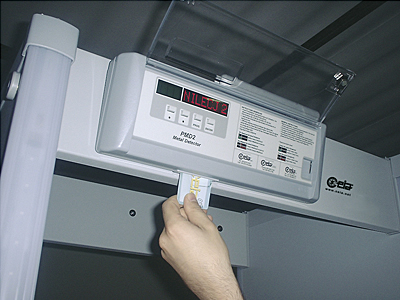

Programming via built-in keypad and display or RS-232 serial connection to remote control unit (RCU2), a PC or a computer network
Programming access protected by both a mechanical lock and two alphanumeric passwords

High detection speed: up to 15 m/s (45 ft/s) exceptional immunity to electromagnetic and Mechanical interference
Multiple installations: automatic synchronisation between two or more metal detectors with a reciprocal distance of down to 5 cm (2”) without the use of cables
High-integration professional electronics and maximum reliability
Control unit incorporated into the detector
No initial or periodic calibration
Easy maintenance: modular control unit for a rapid replacement
Colour: light grey RAL 7040

Installation Data

Power Supply:	115 / 230 vac, ±15%, 45 ÷ 65 hz, 30 va max
External Interface:	RS-232C for connection to a remote control unit (RCU2), a terminal, a computer, an external modem or other Ceia metal detectors
Protection Degree:	Indoor model: IP20 - IEC529 Outdoor model: IP65 - IEC529
Operating Temperature:	-20°c to +70°c
Storage Temperature:	-35°c to +70°c
Relative Humidity:	0 to 95% (without condensation)

Alarm Modes

Visible Signals Multi-zone display bar for "height on person" localisation High intensity display green and red metering signals proportional to the mass of the object detected	Audible Signals High acoustic intensity alarm signal Volume and tone of alarm signal can be programmed

Visible Signals

Multi-zone display bar for "height on person" localisation
High intensity display green and red metering signals proportional to the mass of the object detected

Audible Signals

High acoustic intensity alarm signal
Volume and tone of alarm signal can be programmed

Certification and Conformity

Conforms to the current international security standards for walk-through metal detectors Complies with EC regulations and international standards relating to electrical safety and Electromagnetic Compatibility (EMC)	Complies with regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)

Conforms to the current international security standards for walk-through metal detectors
Complies with EC regulations and international standards relating to electrical safety and Electromagnetic Compatibility (EMC)

Complies with regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)

Accessories

Chip Card System RCU2 MDNC-1 MBSU-1 Unit Metal Detector Divesting Table RRU (remote relay unit)	Photocell Transit Counter Outdoor Version Emergency Batteries MD Scope Stabilizing Plates Transport Case for Ceia elliptic metal detector gate

Chip Card System
RCU2
MDNC-1
MBSU-1 Unit
Metal Detector Divesting Table
RRU (remote relay unit)

Photocell Transit Counter
Outdoor Version
Emergency Batteries
MD Scope
Stabilizing Plates
Transport Case for Ceia elliptic metal detector gate

Click on the icon to download a full Specification Sheet in Adobe Acrobat PDF format
