Hand Held Scanners - Ceia PD140SVR

Very high sensitivity enhanced hand held metal detector

The PD140SVR Enhanced Hand Held Metal Detector is a high sensitivity device designed to detect magnetic and non-magnetic metal masses. It can be used for detecting weapons, detonators or other small pieces of metal carried by people, concealed in baggage or in correspondence.

Its bidirectional detection probe allows either its lower or upper side to detect metals evenly. The special shape of the sensitive surface makes operation of the device easy, unlike other portable metal detectors.

The device is supplied with a standard test piece for functional verification. Custom calibration samples can be supplied in accordance with the Security Regulations in force.

Ceia PD140SVR
Scan-X Security
Scan-X Security
Scan-X Security
Ceia PD140SVR
Scan-X Security
Scan-X Security
Scan-X Security

Click on an image to enlarge

PD140VR
Scan-X

Ceia PD140SVR - Features & Specifications

Technical Features
Power Supply
PD140V: 9V dry battery or 9V NiMH with contact charger
Three-position switch with selection of two different alarm modes Simultaneous optical and acoustic alarm.
Built-in buzzer (75 dBA at a distance of 90 cm)
Optical alarm and handle vibration
  • Pre-calibrated sensitivity that can be modified by using an internal trimmer
Battery life in continuous operation Optical and acoustic alarm*: 40 hours typical**
Optical and vibration alarm*: 30 hours typical**
Indicator lamps for Power on (green light)
Alarm (red light)
Low battery charge (blinking yellow light)
Operating temperature -15°C to 65°C (relative humidity: 0 to 95%)
Dimensions 340 x 80 x 55 mm
Weight (with battery) 0.400 kg
  • Five different alarm tones, selected from the factory, identified by the last digit of the serial number
  • Manufactured in grey, shock-resistant Polycarbonate and ABS blend
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations

* 10% alarm operation, 90% quiescent operation ** NiMH 9V – 150mAh cell
BC140F - Fast Inductive Battery Charger

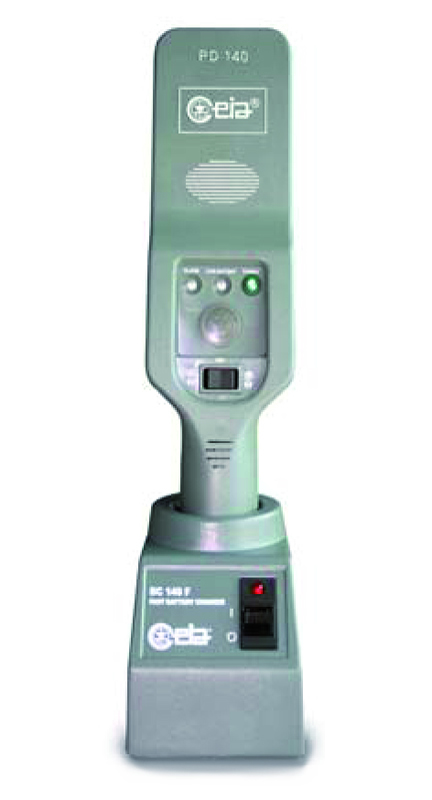

The BC140F unit provides recharging, without electrical contact, of the NiMH batteries in the PD140VR Metal Detectors. The BC140F battery charger is designed to be able to be connected in cascade with other similar devices.

Technical Features
Power Supply 90-265Vrms, 50/60 Hz, 4 W
Recharging Time 4 hours or less (complete cycle)
ON/OFF Switch with indicator lamp
Dimensions 82 x 155 x 97 (h) mm
Weight 0.500 kg
Length Of Mains Cable 1.80 m
  • Connection in cascade with other similar devices (up to 20 units)
  • Length of cable for connecting units in cascade: 0.17 m
  • Manufactured in grey, shock-resistant ABS
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations
V140 - Carrying Case

The V140 carrying-case, in shock-resistant material, is designed to contain the following items: a PD140 Hand Held Metal Detector, a test piece, a BC140F fast battery-charger, a power supply cable and the instructions for use.

Technical Features
Dimensions 445 x 300 x 180 mm
Weight 2.300 kg including PD140 and battery charger
  • Shock-resistant ABS construction and the special storage compartments make the V140 carryingcase the ideal, safest and most compact means of transporting the PD140
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations

PDFClick on the icon to download a full Specification Sheet in Adobe Acrobat PDF format
